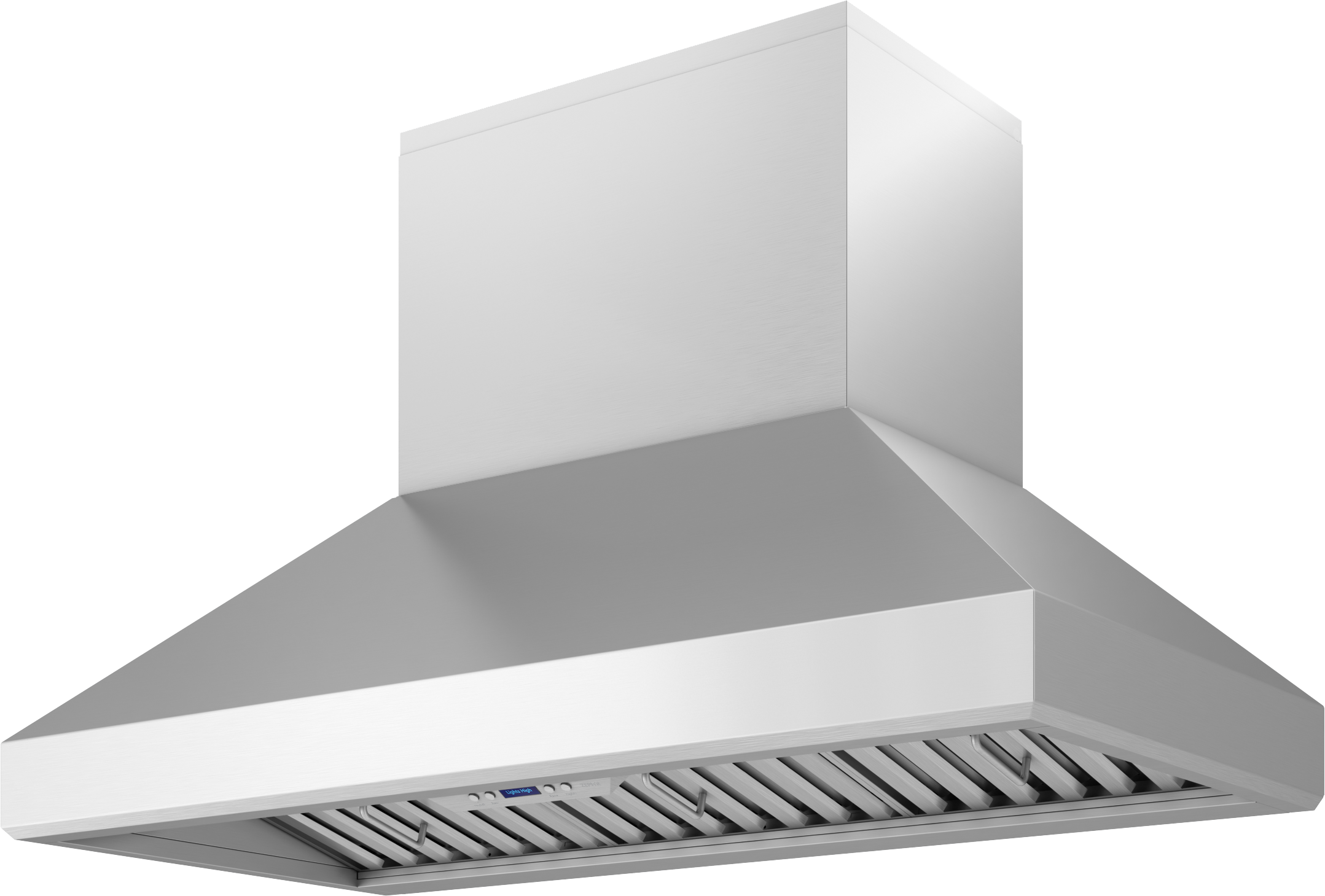

Titan Wall, 48in, SS, PowerWave, 750 CFM w/ACT
Titan Wall, 48in, SS, PowerWave, 750 CFM w/ACT
Everyday Price
$2,999.99
Sale Price
$2,799.99
Total Savings
$200.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Available At...
Regional Distribution Warehouse
In Stock!
Dimensions
Width: 47.9375
Height: 30 - 42.5
Depth: 24
Color
Also Comes In
Stainless Steel
$2,599.99
Stainless Steel
$2,999.99
Stainless Steel
$2,499.99
Stainless Steel
$3,099.99
Features
- Airflow Control Technology™ (ACT™)
- Professional Baffle Filters
- Tri-Level Lighting
- Welded and polished body
- CleanAir Function
- Optional Wireless Remote Control (14000005)
- Optional Extension Duct Cover Kit
Product Description
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr’s PowerWave™ technology, Titan features a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60 inches and features pro baffle filters and LumiLight LED lighting.
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 750 |
| Internal Blower 1 Min. Sones | 0.5 |
| Internal Blower 1 Max Sones | 7 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 8, 10 |
| Duct Size; Vertical in. | 8, 10 |
| Mounting Height Above Cooktop in. | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 8 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1300B, Z1C-0176, 14000005, MUA008A, MUA010A, AK1718 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 300 |
| Certification | UL |
| Nominal Width in. | 48 |
| Net Width in. | 47.9375 |
| Net Depth in. | 24 |
| Net Height in. | 30 - 42.5 |
| Weight lbs. | 85 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 15.5 |
| Chimney Width in. | 22 |
| Chimney Depth in. | 13.93 |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsFeatures
