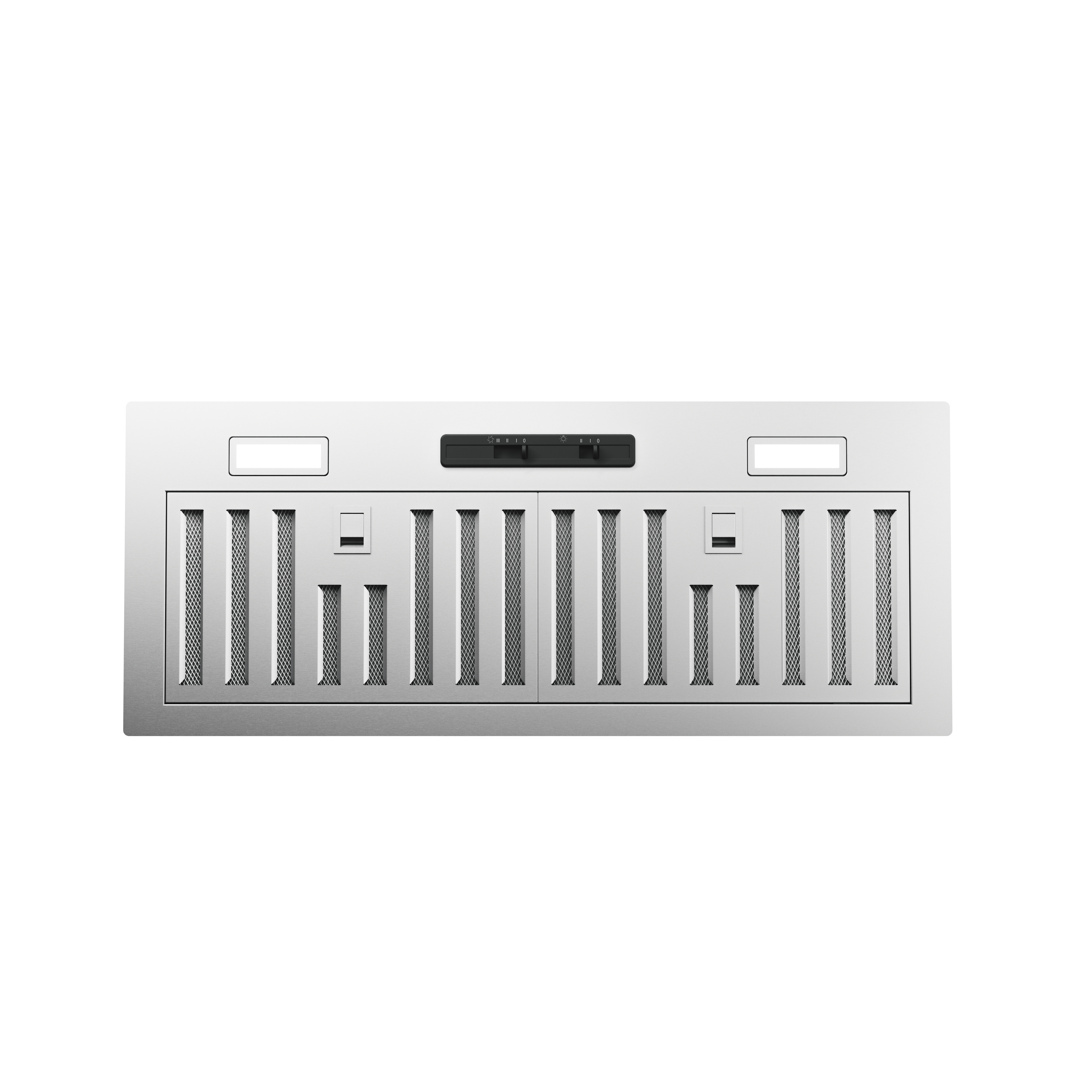

Tornado I, 34in, SS, LED, Hybrid Baffle
Tornado I, 34in, SS, LED, Hybrid Baffle
Everyday Price
$949.99
Sale Price
$849.99
Total Savings
$100.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 33.5625
Height: 10.5
Depth: 11.1875
Color
Also Comes In
Stainless Steel
$799.99
Features
- LumiLight LED Lighting
- Powerful 600-CFM Blower
- Hybrid Baffle Filters
- Mechanical Slide Controls
- Dual-Level Lighting
- Optional Liner Accessories Available
- Optional Ductless Recirculating Kit
Product Description

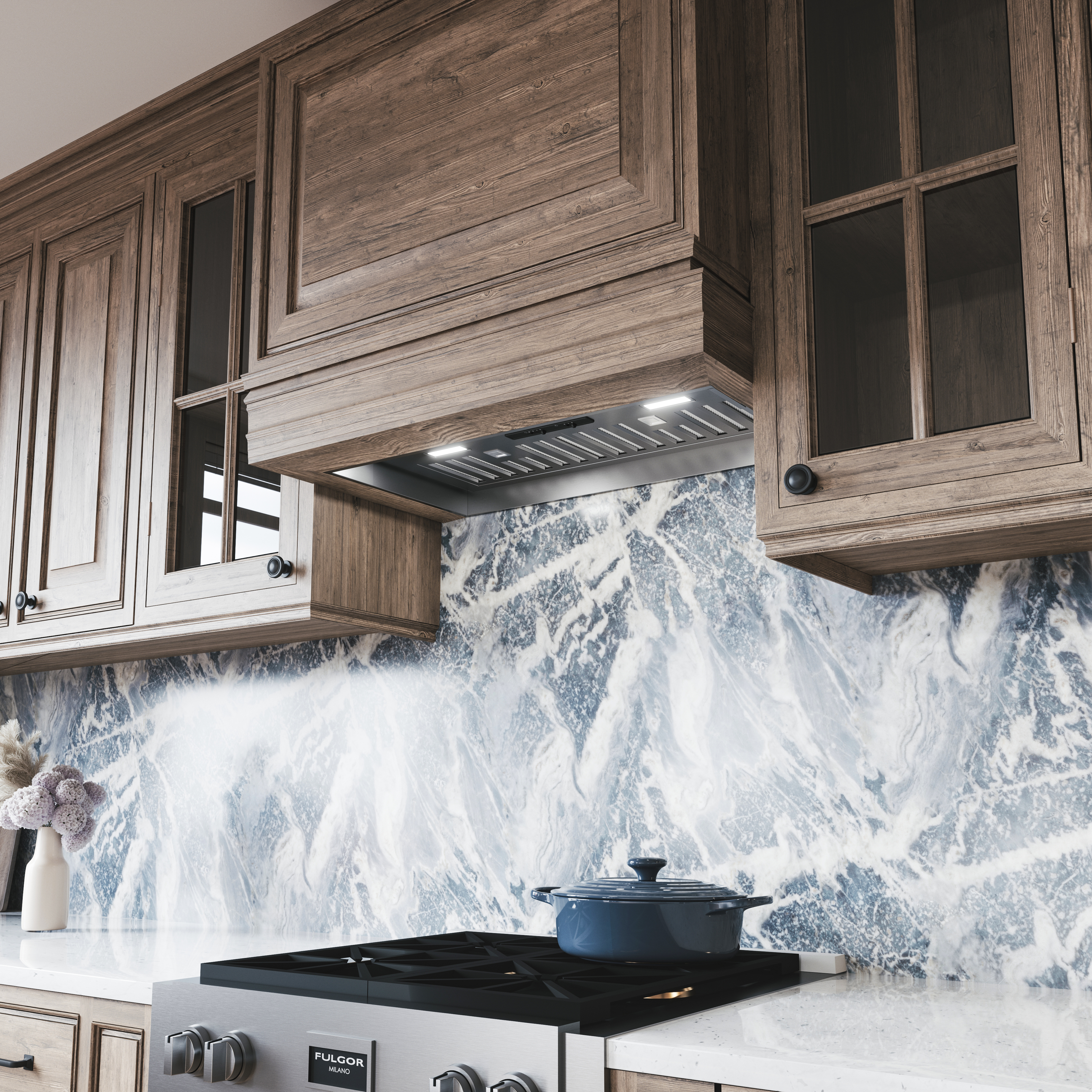

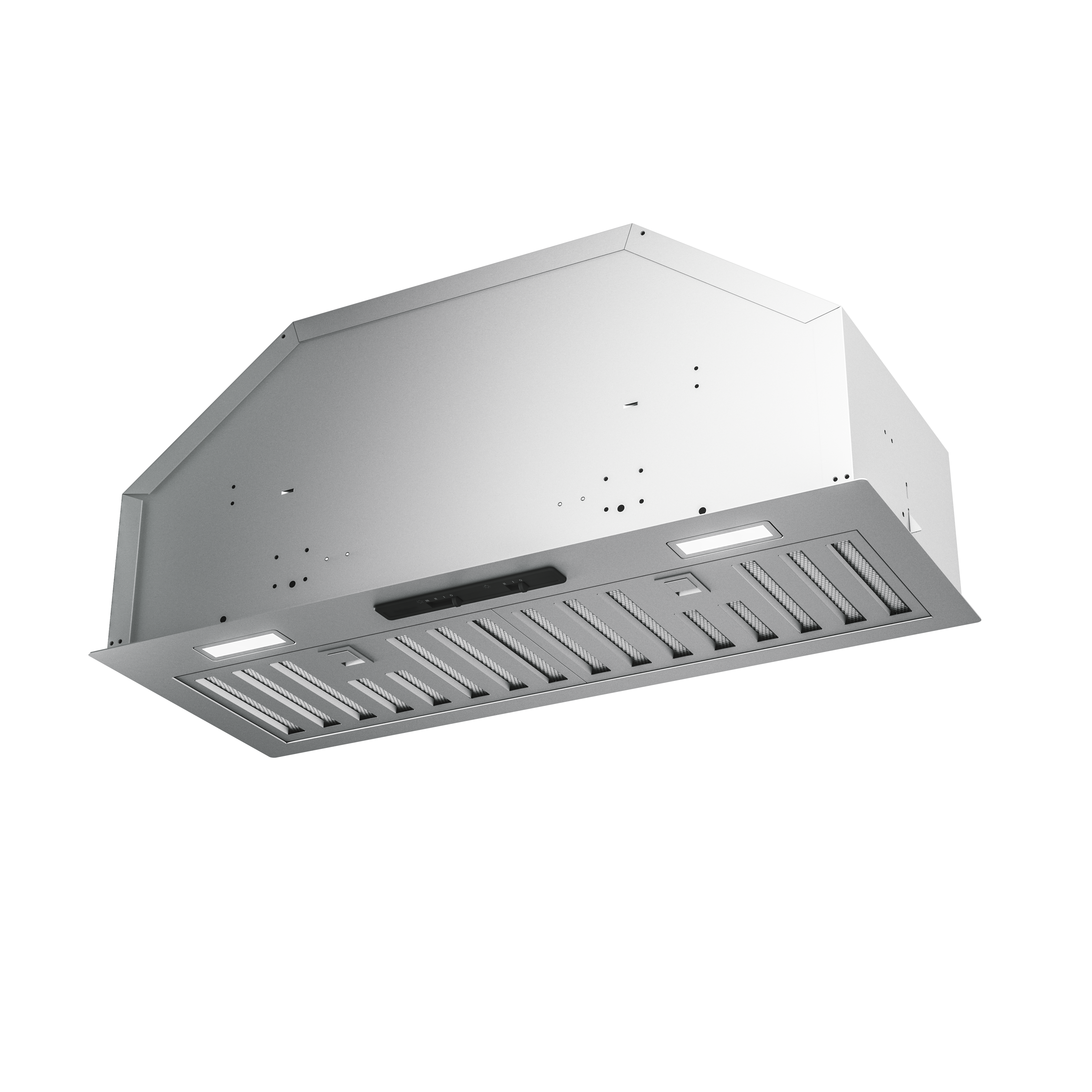

The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
Specification
| General | |
| Blower Included | Yes |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 6 |
| Duct Size; Vertical in. | 6 |
| Mounting Height Above Cooktop in. | 20 - 34 |
| Voltage | 120 |
| Maximum Amperage | 3 |
| ADA Compliant | Yes, with optional wall switch |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-0080, Z0F-C008, AK0836AS, MUA006A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 360 |
| Certification | UL |
| Nominal Width in. | 34 |
| Net Width in. | 33.5625 |
| Net Depth in. | 11.1875 |
| Net Height in. | 10.5 |
| Weight lbs. | 22.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | No |
| Cutout Depth in. | 10.625 |
| Cutout Width in. | 26.875 |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
