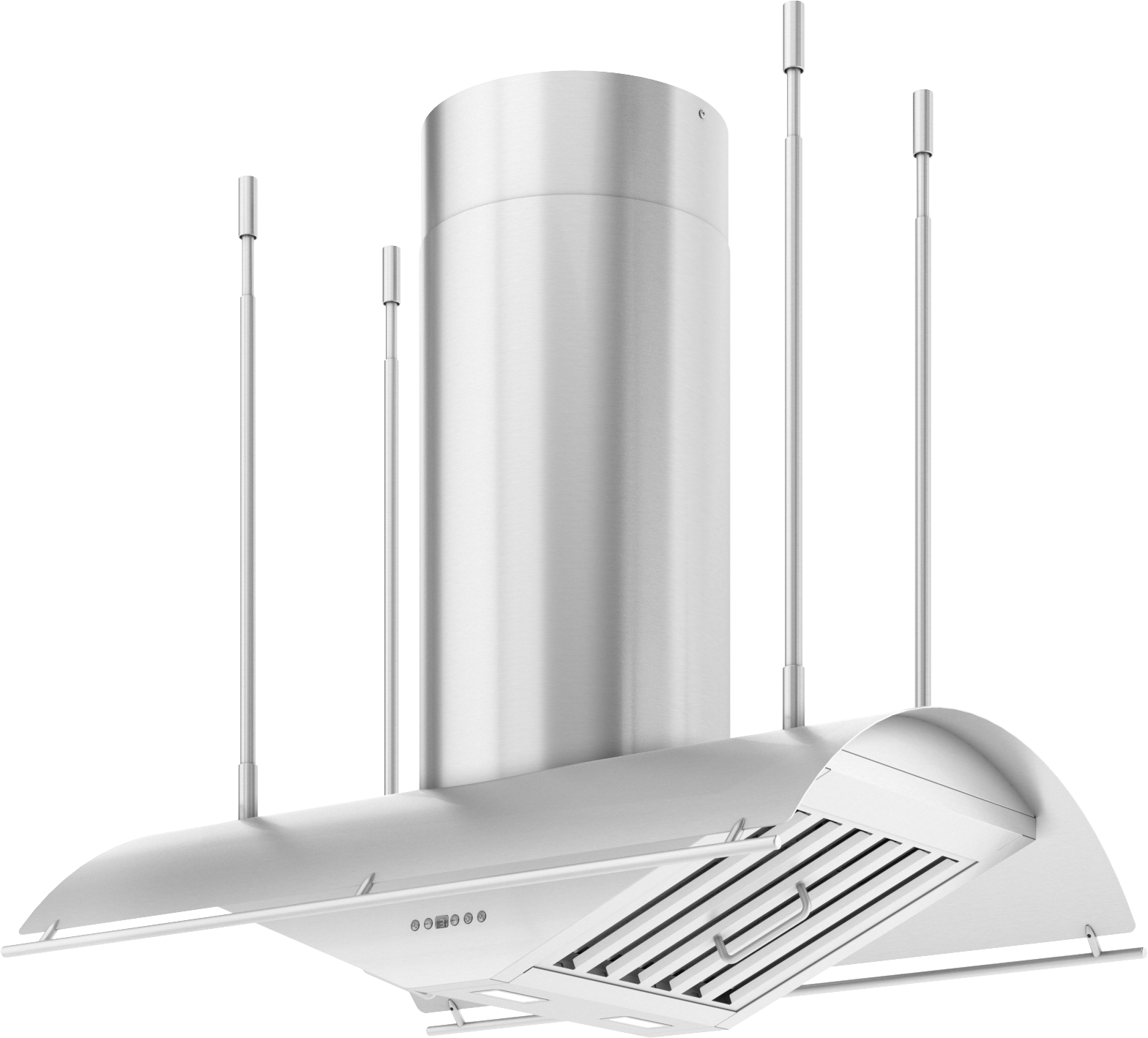

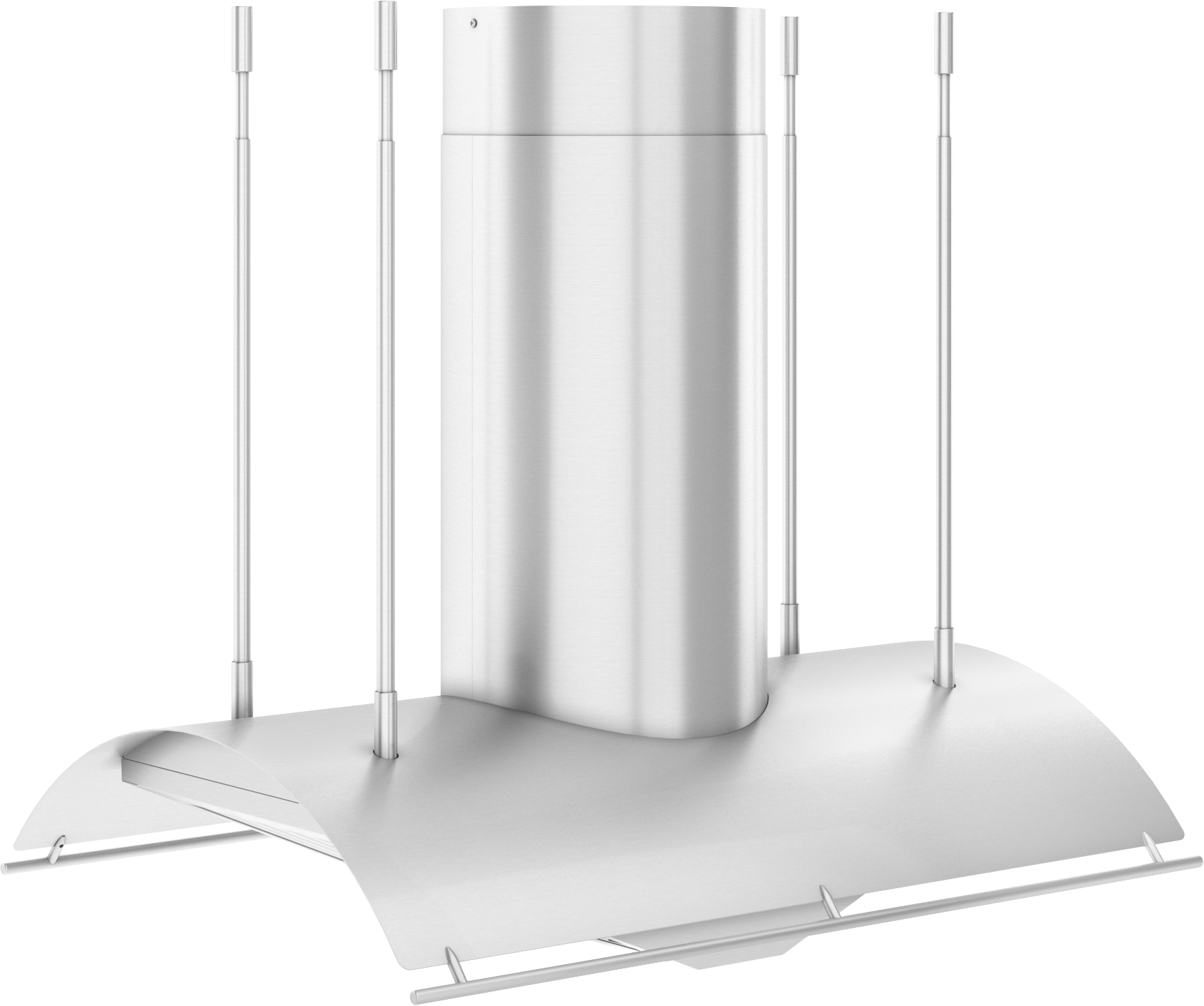

Trapeze, 36in, SS, LED, BODY ONLY
Trapeze, 36in, SS, LED, BODY ONLY
Everyday Price
$4,499.99
Sale Price
$4,299.99
Total Savings
$200.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 36
Height: 34 - 52
Depth: 26.625
Color
Features
- Multiple Blower Options
- LumiLight LED Lighting
- Directional lighting
- Professional Baffle Filters
- Electronic Touch Controls
- Optional Wireless Remote Control (14000005)
- Optional Extension Duct Cover Kit
Product Description

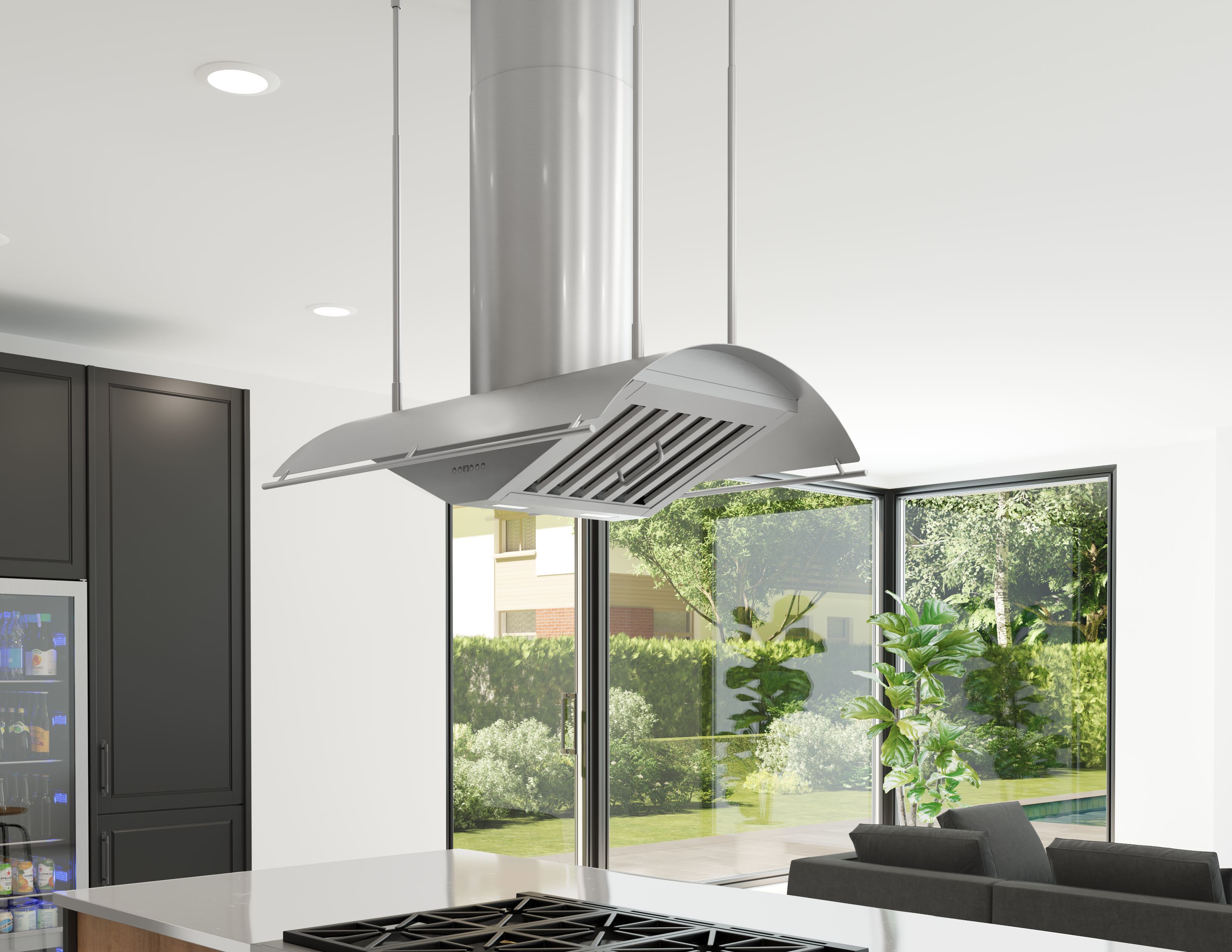

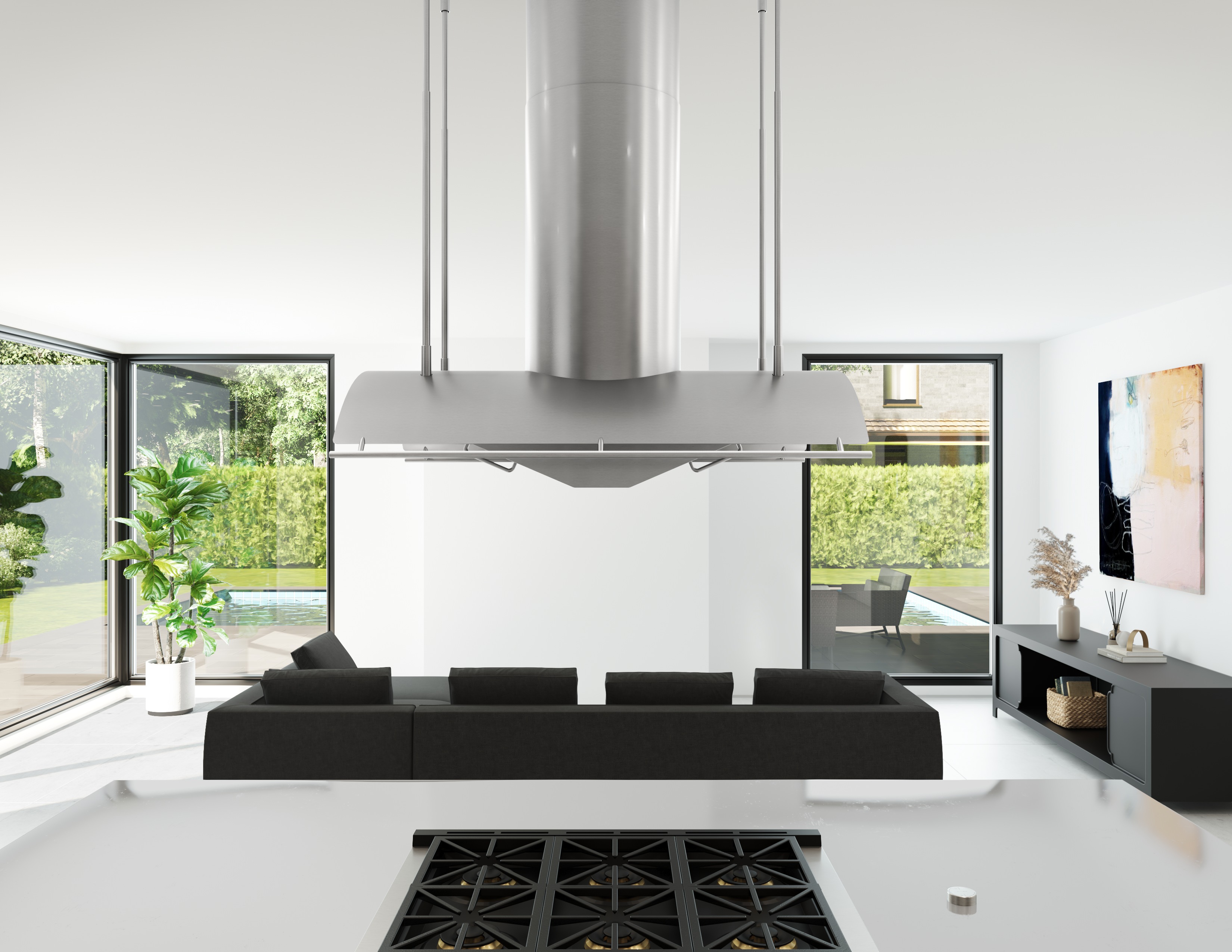

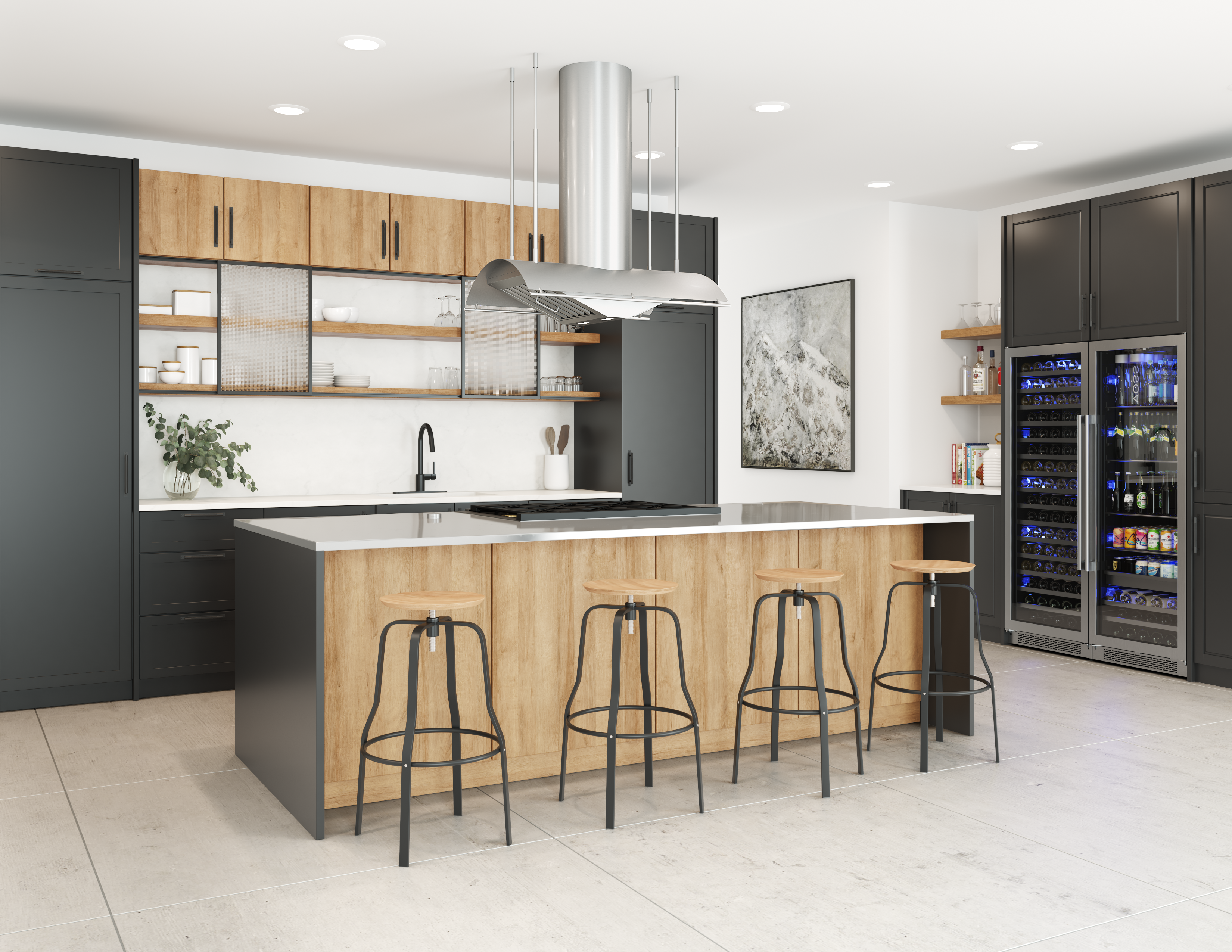

Light and airy Trapeze is a streamlined reprieve from its bulky, conventional counterparts. Using a sleek suspension structure, the Trapeze seems to float in midair. Featuring directional LumiLight LED lighting and a graceful, slow-curve canopy, the Trapeze is more than a focal point — it’s a statement.
Specification
| General | |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Island |
| For Outdoor Use | No |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical |
| Duct Size; Vertical in. | 8 |
| Mounting Height Above Cooktop in. | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | CBI-290C, CBI-600A, PBN-1000A, CBE-1000, CBI-390A, Z1C-00TP, 14000005, MUA006A, MUA008A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 780 |
| Certification | UL |
| Nominal Width in. | 36 |
| Net Width in. | 36 |
| Net Depth in. | 26.625 |
| Net Height in. | 34 - 52 |
| Weight lbs. | 78 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Duct Type | Vertical |
