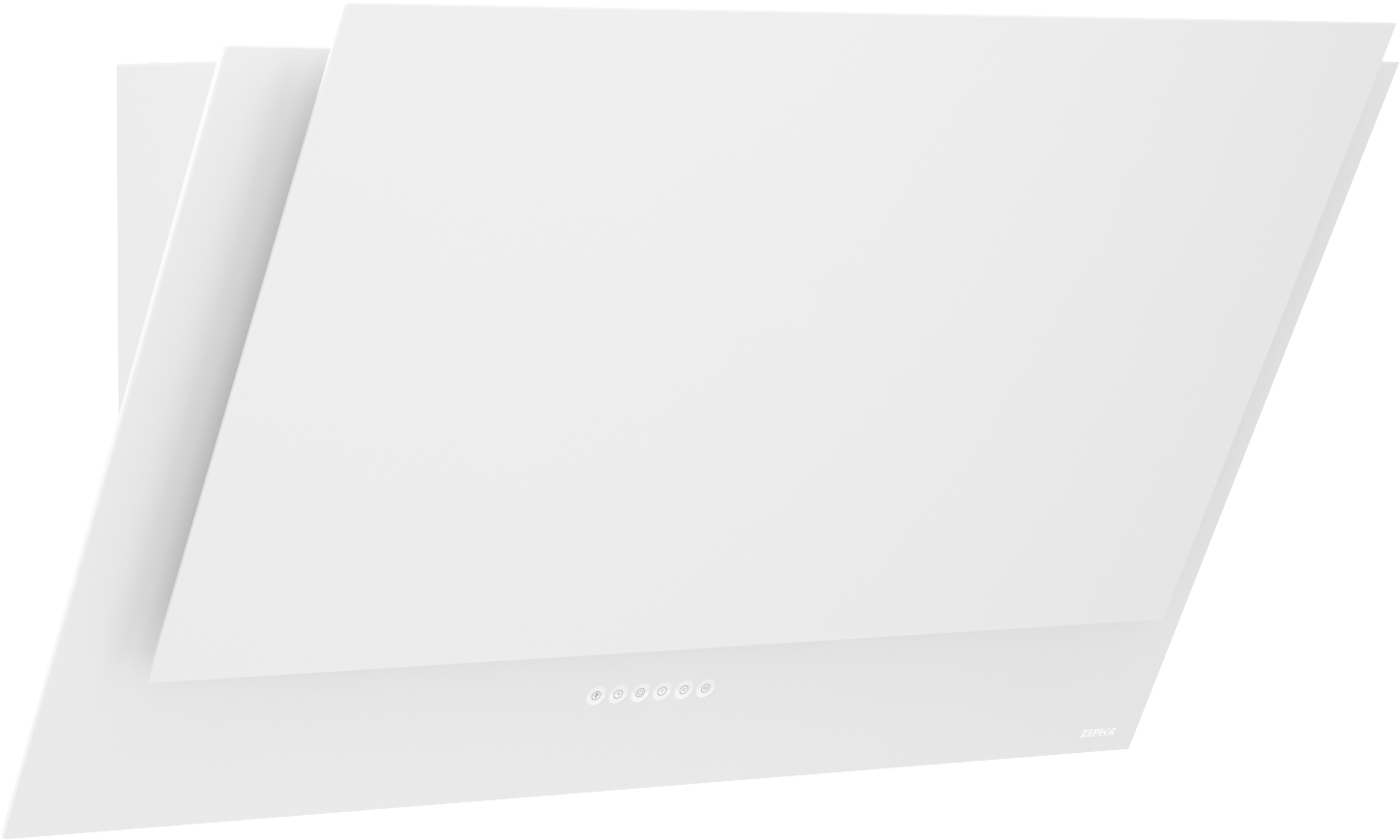

Apex, 90cm, Matte White, BODY ONLY
Apex, 90cm, Matte White, BODY ONLY
Everyday Price
$1,899.99
Sale Price
$1,599.99
Total Savings
$300.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 35.375
Height: 19.75
Depth: 19.8125
Color
Also Comes In
Matte Black
$1,599.99
Features
- Multiple Blower Options
- Capacitive Touch Controls
- Tri-Level Lighting
- Perimeter Aspiration System
- Optional Wireless Remote Control (RC-0003)
- Optional Duct Cover Kit
- Optional Ductless Recirculating Kit
Product Description
Exceptional style, plus the power and performance you’d expect from Zephyr. Featuring white or black glass with matte finish, our Perimeter Aspiration System, easy Capacitive Touch Controls and a recirculating option, the Apex Wall is a hood for today, tomorrow, and beyond. Also includes optional duct cover and remote control.
Specification
| General | |
| Blower Included | No |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 290 |
| Internal Blower 2 Max Sones | 3 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 5 |
| Lights Levels | 3 |
| Grease Filter Type | Mesh |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 8 |
| Duct Size; Vertical in. | 6, 8 |
| Mounting Height Above Cooktop in. | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.42 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | CBI-390A, CBI-290C, CBE-1000, CBI-290A, CBI-600A, PBN-1000A, Z0F-C010, Z1C-00MESS, ZRC-00AP, MUA006A, MUA008A, RC-0003 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 770 |
| Certification | UL |
| Nominal Width in. | 36 |
| Net Width in. | 35.375 |
| Net Depth in. | 19.8125 |
| Net Height in. | 19.75 |
| Weight lbs. | 55 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 11 ft. |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
