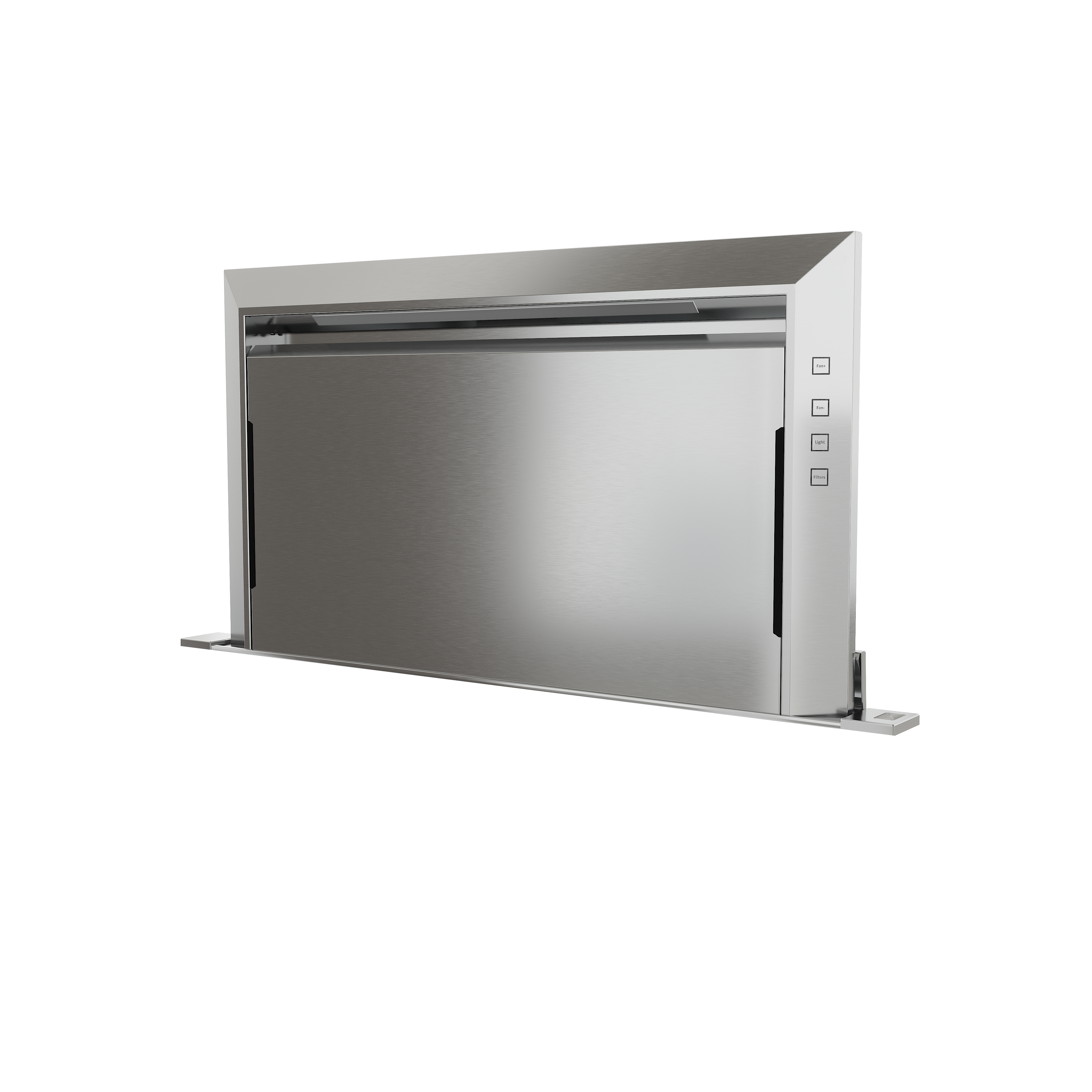

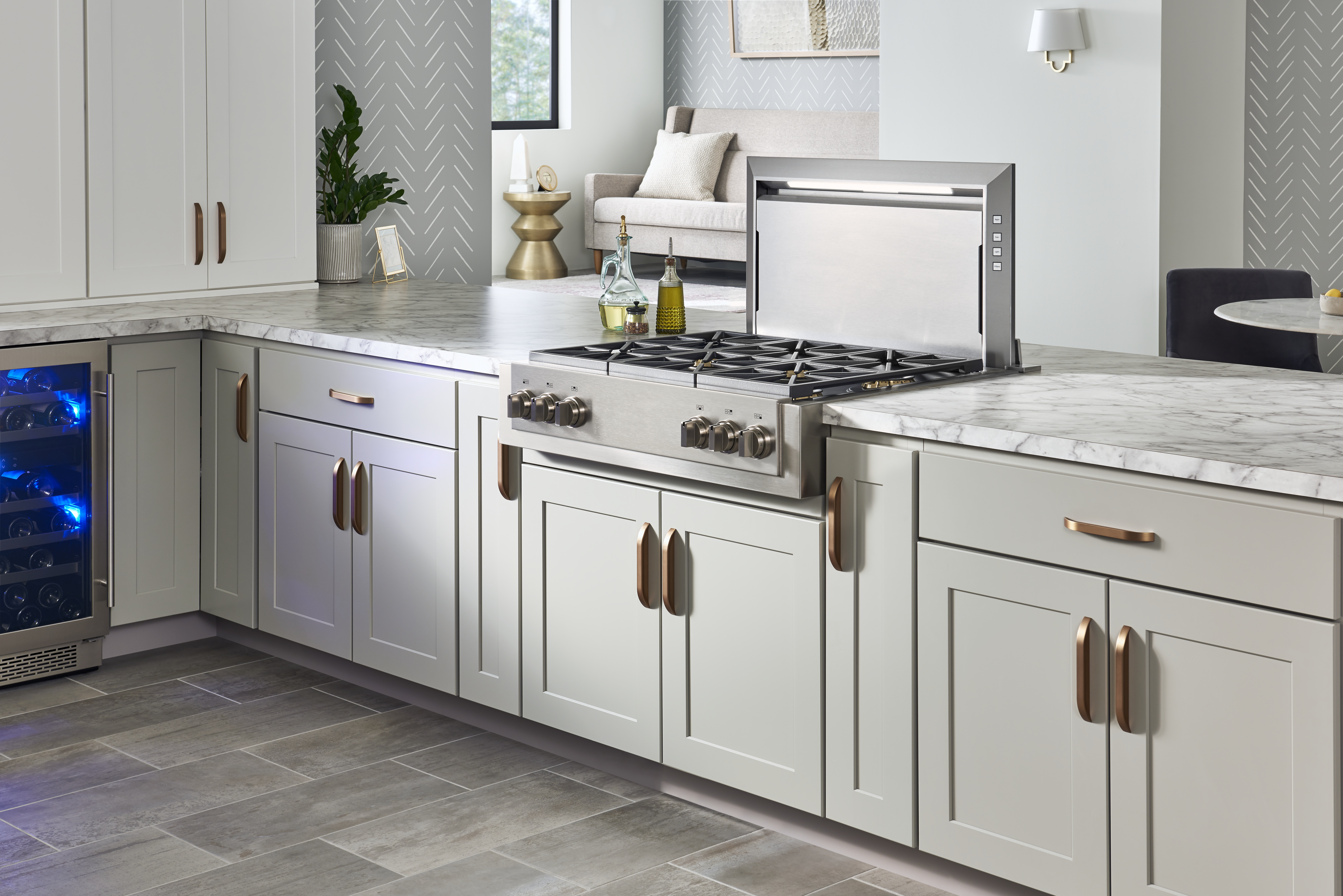

Lift Downdraft, 18" rise, 30" width, Stainless Steel
Lift Downdraft, 18" rise, 30" width, Stainless Steel
Everyday Price
$2,499.99
Sale Price
$2,299.99
Total Savings
$200.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 30
Height: 18
Depth: 2.25
Color
Also Comes In
Stainless Steel
$2,399.99
Features
- BriteStrip™ LED Lighting
- Capacitive Touch Controls
- Dual capture zones
- Multiple Blower Options
- Dual-Level Lighting
- Welded and polished body
- Optional Ductless Recirculating Kit
Product Description

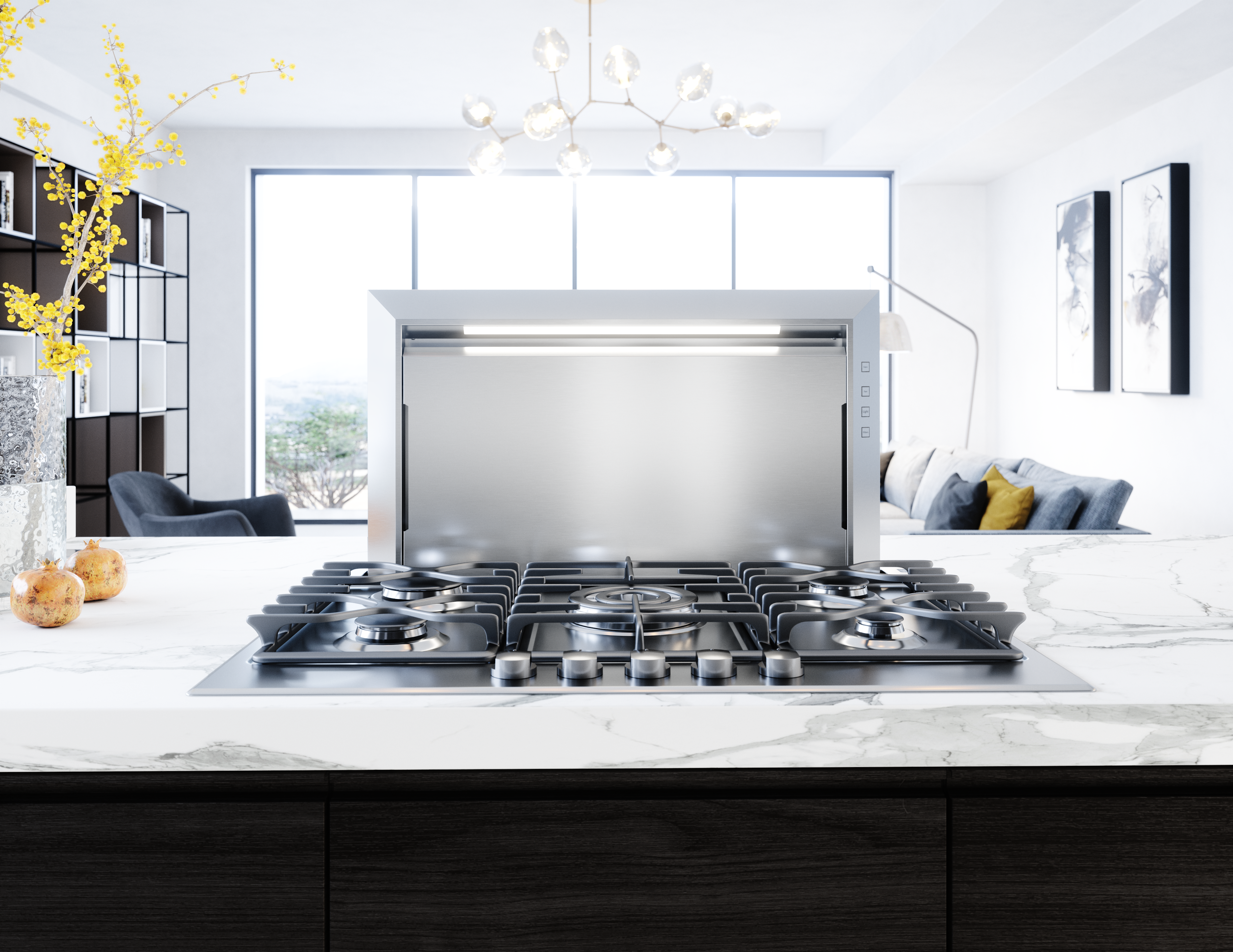

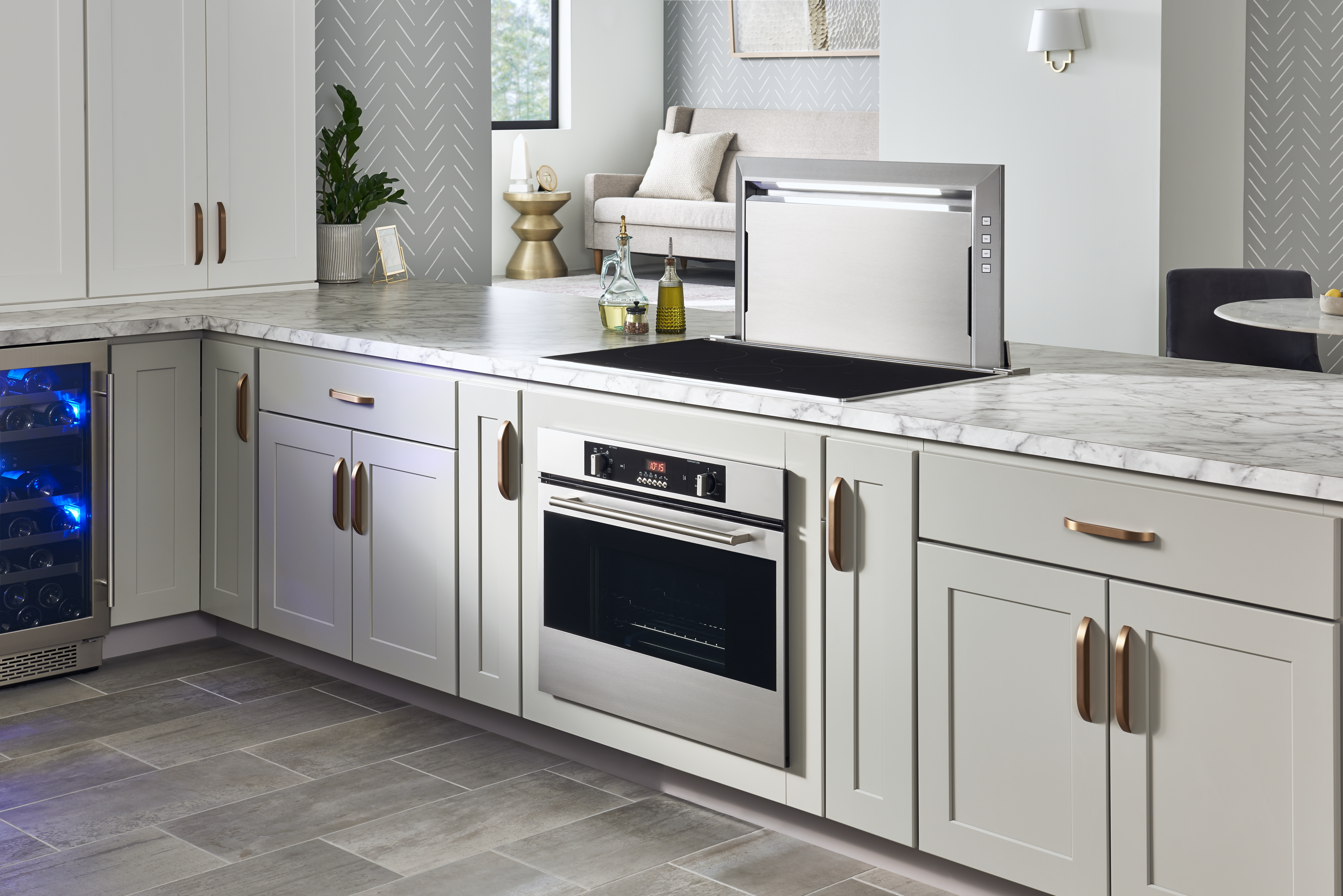

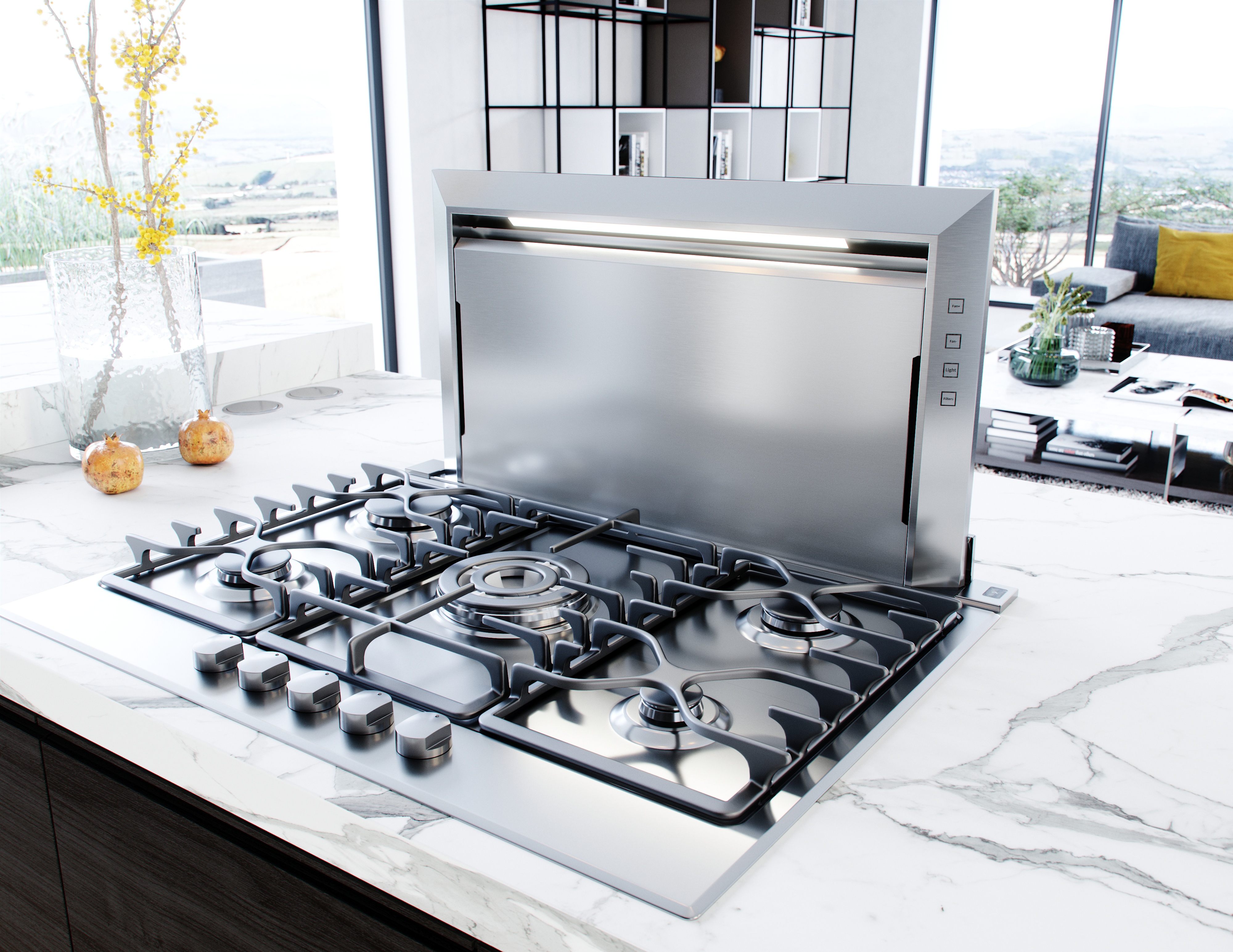

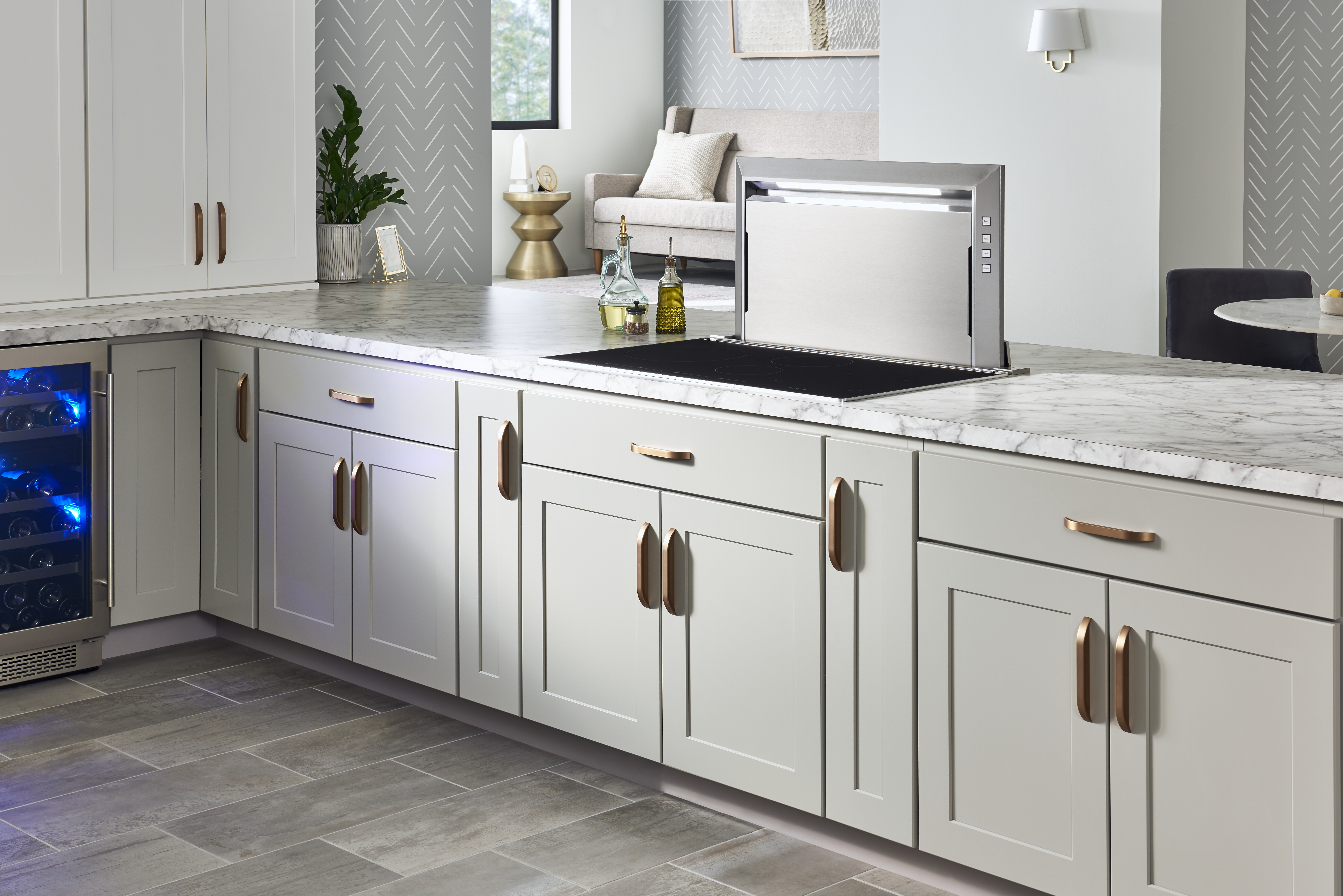

The Lift Downdraft is everything you want in a luxury ventilation system– power, performance, and good looks. Packed with perks like an 18” chimney rise, dual-level BriteStrip™ LED lighting, Tri-Capture Zones and 4-Way Ducting. The Lift is ready to help you rise to any occasion with the touch of a button.
Specification
| General | |
| Blower Included | No |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Downdraft |
| For Outdoor Use | No |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 10 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Duct Discharge | Horizontal |
| Duct Size; Horizontal in. | 2 x 20 |
| Voltage | 120 |
| Maximum Amperage | 4.4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | DBI-600A, PBN-1000A, CBE-1000, ZRC-00LF, DDA-0002, DDS-0030, DDT-0030, 11030132, DDE-0001, 54190053, 54190054, AK00071, AK00072, AK00080, MUA006A, MUA008A, Z0F-C006 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 360 |
| Certification | UL |
| Nominal Width in. | 30 |
| Net Width in. | 30 |
| Net Depth in. | 2.25 |
| Net Height in. | 18 |
| Weight lbs. | 60 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | Yes |
| Duct Type | Horizontal |
