Ravenna Island, 42in, Black SS+Gray Glass, LED
Ravenna Island, 42in, Black SS+Gray Glass, LED
Everyday Price
$2,349.99
Sale Price
$2,199.99
Total Savings
$150.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Available At...
Regional Distribution Warehouse
In Stock!
Dimensions
Width: 41.875
Height: 28.5 - 38
Depth: 25.5625
Color
Also Comes In
Black Stainless Steel
$2,099.99
Features
- Airflow Control Technology™ (ACT™)
- ICON Touch® Controls
- LumiLight LED Lighting
- Dual-Level Lighting
- Curved Glass Canopy
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Product Description

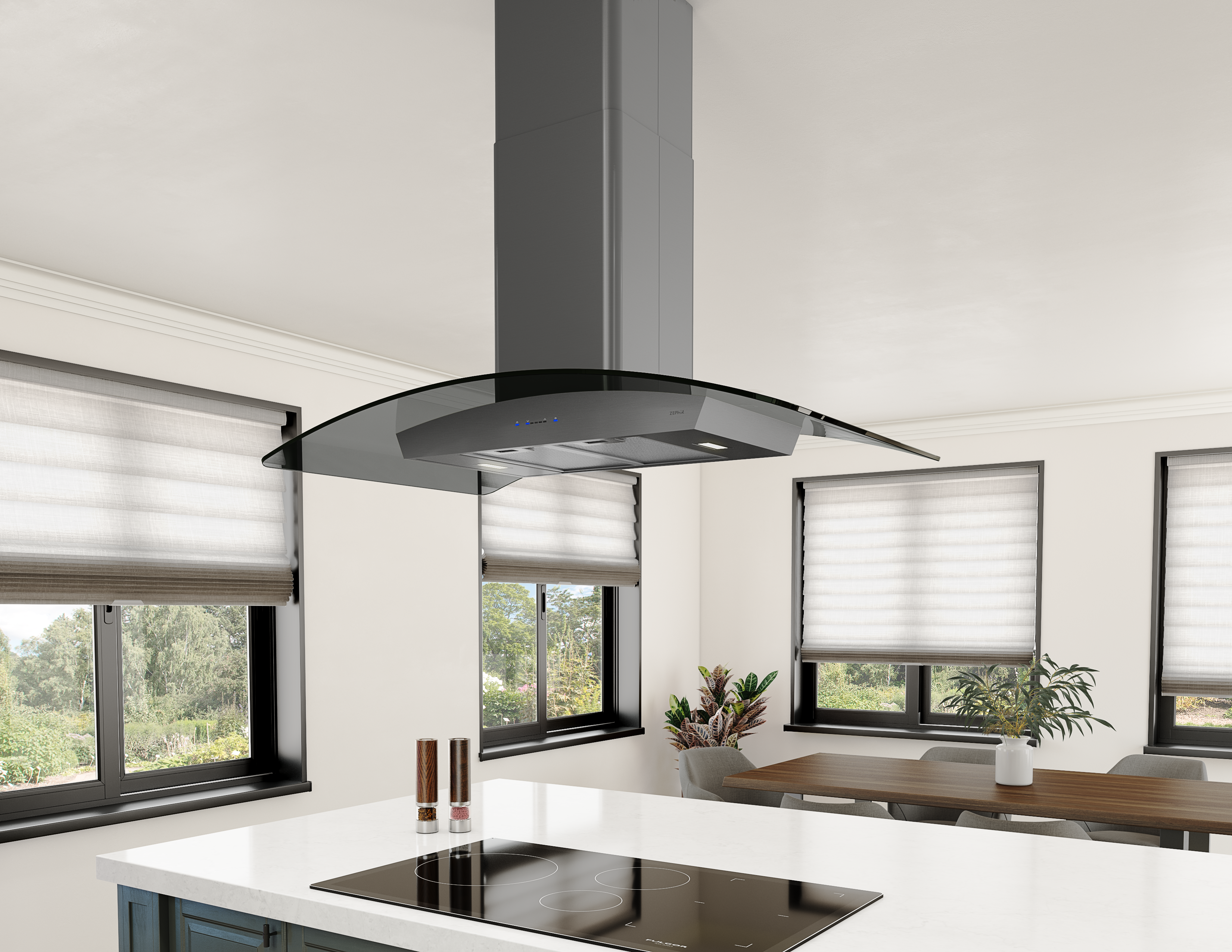

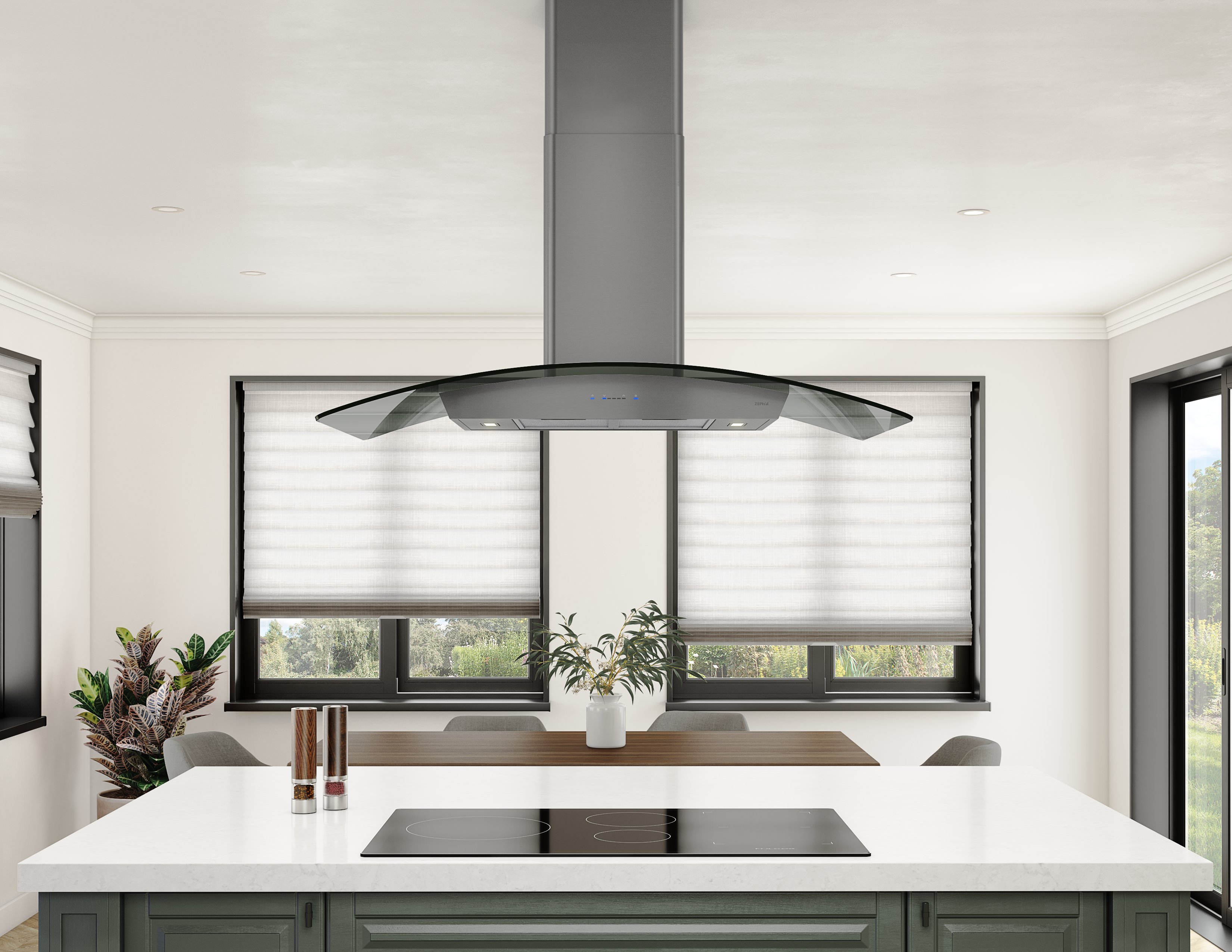

The delicate curve of a smoke-gray glass canopy arching over your island cooktop will add an elegance to your everyday cooking experience. The Ravenna features our sleek black stainless steel finish with an anti-smudge Titanium coating for extra durability and easy cleaning. Complete with our exclusive Airflow Control Technology™ (ACT™), ICON Touch® controls, LumiLight LED lighting, and a powerful — yet quiet — 600-CFM blower. Now available with an optional ADA-compliant remote control.
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Island |
| For Outdoor Use | No |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Duct Discharge | Vertical |
| Duct Size; Vertical in. | 6 |
| Mounting Height Above Cooktop in. | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00RE, Z1C-00REBS, MUA006A, Z0F-C002, RC-0002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width in. | 42 |
| Net Width in. | 41.875 |
| Net Depth in. | 25.5625 |
| Net Height in. | 28.5 - 38 |
| Weight lbs. | 98 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 25 |
| Chimney Width in. | 10.37 |
| Chimney Depth in. | 10.87 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsFeatures
